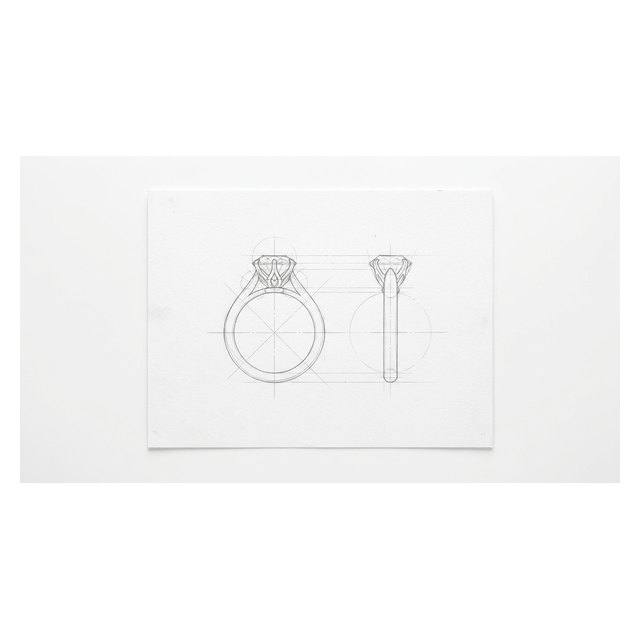

In any jewellery drawing, a handful of lines carry most of the information: the silhouette, the centre line, the line where a shoulder meets a head, the girdle line of the stone. These are the critical lines. Everything else — shading, texture, decoration — is secondary to getting them right.
Why they are critical
Critical lines are the lines shared between views. The width of a ring in the top view must equal its width in the side view; the stone’s diameter is the same in every drawing of the piece. If a critical line disagrees between views, the drawing cannot be made as shown, and a maker will either guess or return it. Training designers to find and control these lines first is what makes technical jewellery drawing reliable.
Symmetry and guidelines
Most jewellery is symmetric, so guidelines — centre lines, axis lines, construction circles — do quiet work keeping both halves of a design identical. Professional drawings keep these guide marks disciplined: light where they are construction, dark where they are final form.
Where this is taught
Line control, guidelines and view consistency are drilled from the first weeks of the JD100 design foundation course at JDMIS and carried into advanced jewellery illustration. For the wider design toolkit, see the JDMIS jewellery blog.
The two guidelines that carry symmetry
Two template-drawn guidelines do most of the work when a design must be symmetrical: the 90-degree cross and the 45-degree diagonal pair. The 90 guideline is drawn with the triangle template in horizontal and then vertical position, one line resting on the other. For the 45s, a second template is laid at 45 degrees as a ramp: the triangle rides up it, drawing the horizontal until the vertical edge crosses, then the vertical — completing the cross. Rotating the triangle anticlockwise onto the ramp at the two diagonal positions draws both 45-degree lines through the centre of the 90.
The practice regime is ten of each: ten 90-degree guidelines on a sheet, then ten 90s with intersecting 45s — always with the mechanical pencil and 2H lead for accuracy, timed, fast but precise. The 90-and-45 pair is what keeps gems and symmetrical objects accurate; everything else in the drawing refers back to them.
Frequently asked questions
What are critical lines in a jewellery drawing?
The handful of lines that carry most of the information: the silhouette, the centre line, the line where a shoulder meets a head, and the girdle line of the stone. Everything else - shading, texture, decoration - is secondary to getting these right.
Why do critical lines have to match between views?
Critical lines are shared between views: a ring's width in the top view must equal its width in the side view. If they disagree, the drawing cannot be made as shown and a maker will either guess or return it.
What do guidelines do in jewellery drawing?
Most jewellery is symmetric, so centre lines, axis lines and construction circles quietly keep both halves of a design identical. Professional drawings keep guide marks light where they are construction and dark where they are final form.
